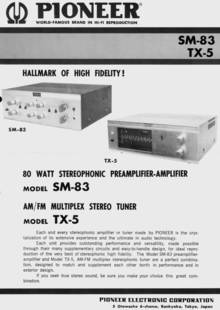

Das Prospektblatt des TX5 Tuners

HALLMARK OF HIGH FIDELITY!
AM/FM MULTIPLEX STEREO TUNER MODEL TX-5

.
Each and every stereophonic amplifier or tuner made by PIONEER is the crystalization of its extensive experience and the ultimate in audio technology.

Each unit provides outstanding performance and versatility, made possible through their many supplementary circuits and easy-to-handle design, for ideal reproduction of the very best of stereophonic high fidelity.

The Model SM-83 preamplifier-amplifier and Model TX-5, AM-FM multiplex stereophonic tuner are a perfect combination, designed to match and supplement each other borth in performance and in exterior design.

If you seek true stereo sound, be sure you make your choice this great combination.

  • Anmerkung : Optisch passen diese beiden Geräte wie die Faust aufs Auge. Das empfanden die Kunden damals genauso und so wurde der Tuner ein Flop.

.

NOTE SOME OF ITS OUTSTANDING FEATURES : TX-5

The Model TX-5 tuner provides reception of AM broadcasts (535 to 1,605 kilocycles), FM broadcasts (88 to 108 megacycles), and FM multiplex stereo broadcasts. Its sensitivity and selectivity is head and shoulders above other tuners, to provide clear and clean reception.

The FM circuit is equipped with an efficient AFC circuit with defeat switch for stable and outstanding hearing.

Channel separation in reception of FM multiplex is exceedingly good, for superb stereo effect. The front panel of the TX-5 tuner is of extruded aluminum, similar to the SM-83 amplifier, to provide a clean cut professional look. When installing the tuner in a custom cabinet, just remove the outer metal case. The front panel is permanently attached to the chassis and will greatly enhance the appearance of the cabinet.

The discriminator is a stable and efficient Foster-Seeley circuit.

The 'magic eye' tuning indicator on the front panel is an easy-to-read horizontal type, and overall layout and construction is designed for maximum ease in operation. Station selection is easy with the extra-large tuning scale.

SPECIFICATIONS OF THE TX-5

FM SECTION
Circuitry : Cascode RF Amplifier using Nuvistor
  Ratio Discriminator with AFC
Frequency Range : 88—108mc
Usable Sensitivity (IHFM) : 1.5 fiv at 98 mc
Selectivity : ±100 kc at -3db
Discriminator Bandwidth (peal c to peak) :
  600 kc
Antenna Input : 300 ohms (unbalanced)
MULTIPLEX SECTION
Circuitry : Switching type, includes stereo indicator light
Channel Separation : More than 35 db
AM SECTION
Circuitry : Super Heterodyne circuit with tuned RF stage
Frequency Range : 535—1,605 kc
Selectivity : Sharp-±3kc (-3db) Broad-±9kc (-3db)
Antenna Input : Built-in ferrite loopstick with terminal for external antenna
Power Requirements 115/230 volts, 0.73/0.37 Amperes
& Construction : 75 watts 50—60 cps
Tubes: 6CA4X1 6BE6X1 6BA6X3 6AV6X1 6AQ8X3 6CG7X1 6CW4X1 (Nuvistor) 6AV6 X 1 EM-84X1 OA-81X7 (Diode)
Neon Light : Stereo indicator light
Dimensions : 15"(W) X 5"(H) 13"(D)
Weight : 18 lbs. 15oz.
